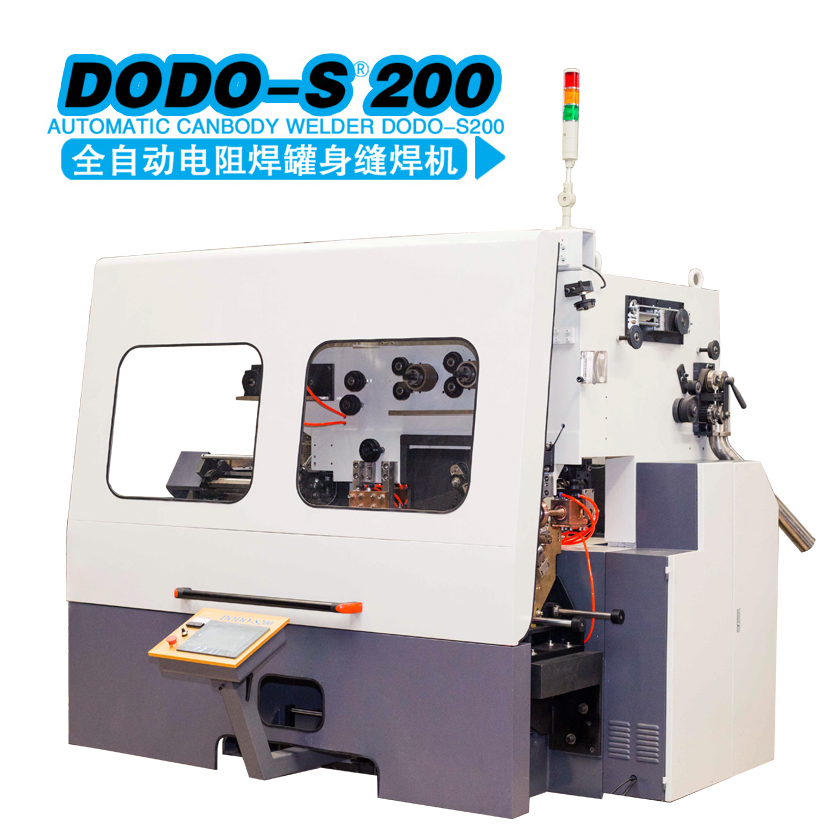

AUTOMATIC CANBODY WELDER DODO-S200
- Model: DODO-S200
- Size: 1435x1980x2050mm
- Weight: 3000kg
- Update: 2021-3-27
- Features:
* to some extent affected by tank type and material quality.
DETAILED:
產品參數:
產品型號Type：DODO-S200
焊接速度welding speed [m/min.]：Max.40米/分鐘
生產速度production speed [pcs/min.]：Max.200個/分鐘
適用罐徑Applicable diameter [mm]：52-153mm
適用罐高Applicable height [mm]：70-265mm
外形尺寸external dimensions [mm]：1435x1980x2050mm
重量weight [kg]：3000kg
產品其他參數：
適用材料Raw Material : 馬口鐵(鍍錫鐵板)/Tinplate
鍍 錫 量Tin Coating : 5#-100#
適用硬度Sheet Hardness :T2.5-DR8, DR8厚度大于0.20mm
適用厚度Sheet Thickness : 0.16-0.35mm
銅線直徑Copper Wire : 1.24-1.38mm
搭接寬度Overlap : 0.35-0.5mm
焊接點距Welding Distance : 0.6-1.1mm
冷 卻 水Cooling Water : 8-10℃，5-6kg/cm2，20升/分鐘
壓縮空氣Compressed Air : 5-6kg/cm2，800升/分鐘
Elevation(Over-and-under)Type
Feeder and Channel,Time Saver
可翻開式料架及可升降式導罐槽，
操作更省事省時。
